FULA ROV

Characteristics:

Hybrid approach
- Up to 6 hour of autonomy with batteries
- Surface powered
HD Camera
8 thrusters, 6 Degrees of Freedom
Payload
- USBL
- DVL
- 2 functions manipulator
- Aux camera
Tethers
- 200m 4mm diameter copper
- 300m 7mm dia. copper
- 3000m 4.2 Fiber optic
- 300m 9mm data and power, copper
Weight: 15kg
Dimmensions:
Depth rate: 500m

3D SONAR SCAN

DESCRIPTION:

3D sonar scanning is a technique used to map with great detail and precision. both the sea bed and that of rivers and lakes, and it is also designed for the detailed inspection of submerged structures, such as bridge pillars, docks, etc.

FUNCTIONING:

By sending a series of acoustic pulses in the form of a "beam" from a transducer in the hull of a ship to the bottom of the sea which bounce off the bottom and are picked up back by the transducer. These pulses bounce off the background and are picked up again by the transducer, which converts them into digital sound data.From this data collected by the transducer, three-dimensional images can be generated that will serve a wide variety of applications.

SOLEA ROV (Electric tracked vehicle)

Characteristics:

Equipped with dredging pump and cleaning tools
- Rear camera
- DVL
- Multibeam imaging sonar
- Pipe profiler
- Cable counter
- Stereo camera
- Rotary brushes
- Water jets
Depth rate: 100m
Weight: 60kg
Dimmensions:
Tether: 12mm Fiber optic and power

USBL

Characteristics:

Model X110 and X150
Depth rate: 2000m depth rate
Distance covered 1Km horizontally and vertically
Model X110 and X150
Depth rate: 2000m depth rate
Distance covered 1km horizontally and vertically
RS232 communication
Power suplly: 9-28V
Power consumption: 6W each
Weight(air/water) X150: 720/530g | X110: 690/500g

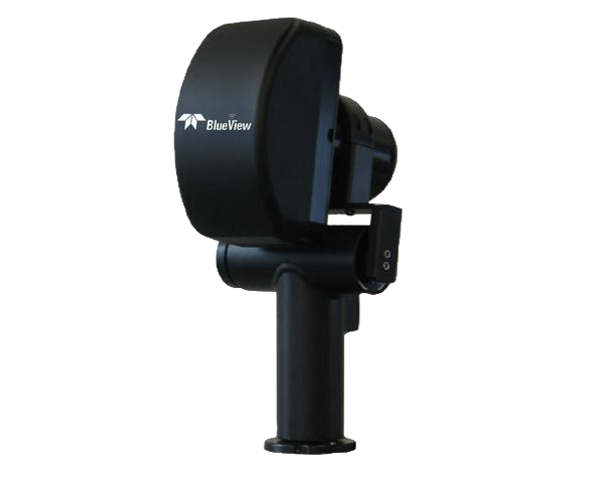

BV5000 3D IMAGING SONAR

Characteristics:

Model: 1350 and 2250
Depth Rating: 300 m (1,000 ft.) / 4,000 m (13,123 ft.)
Maximum Range: 30 m (98 ft.) - 10 m (32 ft.)
Optimum Range: "1 - 20 m (3.2 - 65 ft.)" / "0.5 - 7 m (1.6 - 23 ft.)"
Ethernet/RS485 communication
Power Requirement: 20-29(V DC)
Power Consumption: 45 max(W)
Weight in Air/Water: (lbs.) 21.7/8.2 - 19.1/6.0
